Wall Anchors: Tying a Leaning or Bowing Wall Back to Firm Soil Out in the Yard
When soil and water pressure pushes a basement or foundation wall inward, wall anchors connect it to a steel anchor plate set in firm soil out in the yard across North and South Carolina.
Get a Free Inspection
Two ways to start. Both are free, with no obligation.
Pick your own day in our calendar. You save $250 if you go ahead with the work.
Send a short form, and our office will call to book a time that suits you.
For new customers who book online through our website and then sign a contract.
What to Know About Wall Anchors
A wall anchor carries the wall's load past the soil pressing right behind it and into firm, undisturbed soil out in the yard. The wall bows because that soil pushes harder than the wall can hold, so the system ties the wall to ground that can resist the load.
The holding part is a steel anchor plate buried in the yard, far enough out that the soil around it is firm and undisturbed. A threaded steel rod runs from it through a small hole to a plate on the inside face of the wall. Tightening the nut on the inside plate puts the rod in tension and holds the wall against the buried anchor. Where there is no open yard, steel I-beams braced inside the basement can hold the wall instead.
The number and spacing of anchors depend on the height and length of the wall, how far it has moved, the crack pattern, and the soil behind it, so diagnosis comes first. The system is designed to stabilize a foundation wall leaning inward, holding it against further inward movement. It does not remove the water that adds to the pressure, so the inspection also looks at how water reaches the wall.
The symptoms that usually lead to wall anchors are on the foundation repair problem signs page, alongside the other signs that point to the same underlying cause.
How We Install Wall Anchors
- Step 01
Free Inspection and Diagnosis
We start by confirming that sideways soil pressure is the actual problem and measuring how far the wall has moved. We look at the bow or lean and at a horizontal crack across block courses. We also look at how water reaches the soil behind the wall. In Piedmont clay or on an Asheville hillside, the source of the pressure shapes the recommendation, and we will tell you plainly if wall anchors are not the right fit for your wall.
- Step 02
Confirm Wall Anchors Fit the Wall and the Yard
Wall anchors need open ground beyond the wall, because the anchor plate is buried in firm soil out in the yard. We confirm there is room for the anchors and that the wall is a good candidate. Early, minor bowing may be better served by carbon fiber, and a wall with no yard access by I-beam bracing. A settled footing may call for underpinning the footing with piers instead. We explain the layout and the plan before any work begins.
- Step 03
Set the Anchor Plates in Firm Soil
We bore a small hole through the wall and out into the yard, then place a steel anchor plate in firm, undisturbed soil beyond the soil pressing on the wall. In Piedmont yards this often means reaching past clay that swells after wet weather. A threaded steel rod runs from that buried plate back through the hole to the inside of the wall.
- Step 04

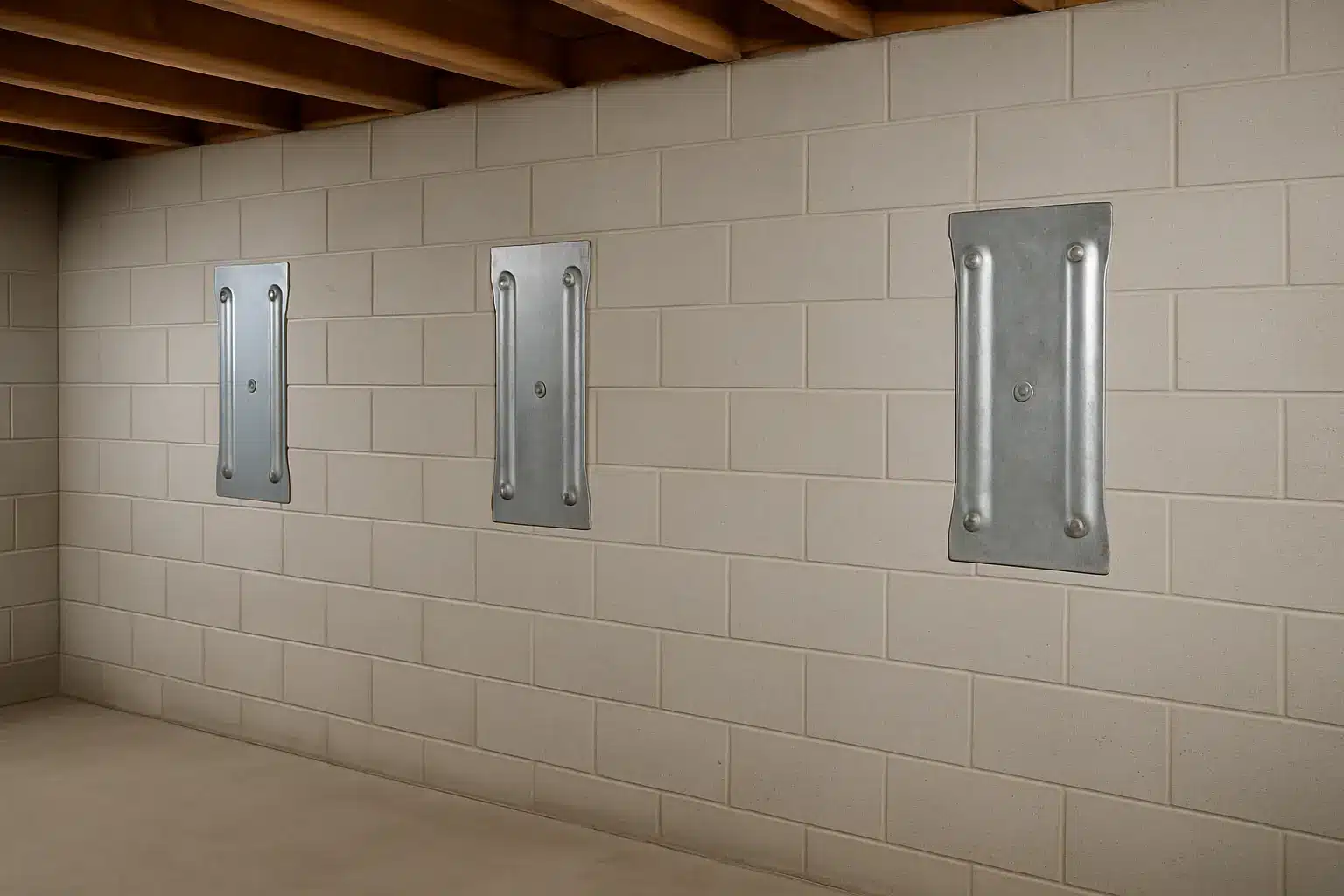

Mount the Wall Plates and Tension the Rods
A steel plate is mounted to the inside face of the wall and connected to each rod. Tightening the nut puts the rod into tension and engages the buried anchor, so the wall is held against firm soil, which is designed to stop further inward movement. The small yard excavation over each buried plate is then backfilled and restored. Where the yard has no room for plates, steel beams braced inside the basement may be another option.
- Step 05
Review the Stabilized Wall
We review the stabilized wall with you and explain what comes next. Because sideways pressure is often driven by water in the soil, we also go over how water reaches the wall, so you understand what the anchors do and what they do not do.
How Do Wall Anchors Hold a Bowing Wall in Place?
A wall anchor ties a leaning or bowing basement or foundation wall to a steel plate buried in firm, undisturbed soil out in the yard, beyond the soil that is pushing on the wall.
Care and Expertise From a Team Serving the Carolinas Since 2017
When the fix is wall anchors, our own crews do the work. HydroHelp911 handles foundation repair and related structural and moisture work across North and South Carolina.
An inspector looks at your home, finds the source of the problem, and explains each finding in plain language. There is no obligation.
We are headquartered in Dallas, North Carolina, with eight offices across North and South Carolina.
Foundation repair, crawl space repair and encapsulation, basement waterproofing, framing repair, and concrete leveling are the whole focus of the team.
We have 1,300+ verified Google reviews (4.9 stars) from homeowners across the Carolinas and are BBB A+ Accredited.
For example, helical and push piers carry a lifetime warranty that no additional settlement will occur in the area of installed piers, once the final invoice is paid in full. Read the warranty terms.
Ask your inspector about financing when you get your written estimate. See financing options.
Common Questions About Wall Anchors
Don't see your question here? Call or fill out our quick online form, and our team will help.
A wall anchor stabilizes a leaning or bowing wall using a steel plate buried out in the yard in firm soil, connected by a threaded rod through the wall to a plate on the inside face. Tightening a nut on the inside plate ties the wall to that buried anchor. A helical tieback works on a similar idea but uses a steel anchor, shaped like a screw, turned into the soil at an angle from inside, with no buried plate in the yard. HydroHelp911 stabilizes bowing walls with wall anchors, I-beam wall bracing and carbon fiber, and tiebacks are explained on their own page for comparison. Which repair fits depends on your wall, your soil, and how much room is available in the yard, and we confirm the right choice during the inspection.
Which Foundation Repair Problem Signs Can Wall Anchors Help With?
A sign can trace to more than one cause. These are the foundation repair signs that can point to a cause this method addresses; the inspection shows which cause is at work in your home.
Bowing Walls
When a basement or foundation wall curves, leans, or bulges, the soil outside is pushing harder than the wall was built to resist.
Learn More
Cracked Block Foundation
When a concrete block foundation cracks, the wall is telling you that either the footing beneath it has settled or soil outside it is pushing inward.
Learn More
Stair Step Cracks
When cracks climb diagonally along the mortar joints of a brick or block wall, the masonry may be showing you that one part of the foundation has shifted.
Learn More
Diagonal Cracks
A crack running on an angle out of a doorway corner, across a wall, or up through brick is one of the clearer signs that a foundation has shifted.
Learn More
Large Cracks From Shifting or Water Pressure
A wide or growing crack is often more than a surface flaw.
Learn MoreExpansive Soil
Expansive soil changes volume as it gains and loses moisture. When that movement is uneven, it can lift, drop, and rack a foundation.
Learn MoreOther Foundation Repair Solutions We Install
Each solution fits a different cause. The inspection shows which one your home needs.
Carbon Fiber Reinforcement
When soil and water pressure starts pushing a foundation wall inward, carbon fiber straps bond to the wall and resist that load, a slim repair for minor to moderate bowing.
Learn More
Epoxy or Polyurethane Crack Injection
A targeted way to seal cracks in poured concrete foundation walls and stop water seepage, paired with a careful look at what caused the crack in the first place.
Learn More
Foundation Underpinning
When the soil near the surface can no longer carry your foundation, underpinning reaches deeper ground to stabilize the structure.
Learn More
Helical Piers
Steel piers shaped like large screws, turned down below the active surface soil to support and, where possible, lift a settling foundation.
Learn MoreDeep Foundation Systems
When the soil near the surface keeps moving, we install piers that carry your home's weight down to ground that holds, and only after a free inspection.
Learn MoreGrout Injection (Chemical Grouting)
A targeted way to fill voids and firm up weak or shifting soil under foundations and slabs, so settlement has less room to continue.
Learn MoreGuides and Answers
More Reading on Foundations
An article from our team about foundations and the repairs we make.
Foundation Crack Repair
Foundation Crack Repair Methods
The best foundation crack repair method depends on the crack: epoxy for dry, stable cracks, polyurethane for leaks, carbon fiber for bowing walls and piers for settlement.
Get the Free Foundation Repair Guide
A free guide for homes in North and South Carolina: what can move a foundation here, the signs worth writing down, and how foundation repairs work, in plain language.
- A room by room checklist to walk your home with
- Why foundations move in Piedmont clay, on hillsides and near the coast
- How piers, wall anchors and other repairs work
- Five questions worth asking any contractor, including us
1,300+ Verified Google Reviews (4.9 Stars)
Before you choose a contractor for wall anchors, read how homeowners across North Carolina and South Carolina rate our work.
How Do I Book a Free Inspection?
Pick your own time online, or fill out our quick online form and we will book a convenient time to assess your home, no cost, no pressure.
- A free inspection of your home
- Every finding explained in plain language
- A written estimate at no cost
- No obligation
Not Sure Which Service You Need?
A free inspection covers all of it: one visit, clear findings, and a written estimate at no cost.
