Carbon Fiber Reinforcement: Holding a Bowing Wall Flat Without Tearing Into Your Yard
When soil and water pressure starts pushing a foundation wall inward, carbon fiber straps bond to the wall and resist that load, a slim repair for minor to moderate bowing across North and South Carolina.
Get a Free Inspection
Two ways to start. Both are free, with no obligation.
Pick your own day in our calendar. You save $250 if you go ahead with the work.
Send a short form, and our office will call to book a time that suits you.
For new customers who book online through our website and then sign a contract.
What to Know About Carbon Fiber Reinforcement
Carbon fiber adds strength in tension where a bowing wall is weakest. Masonry and concrete resist being squeezed but not being pulled apart, which is what happens on the inside face when soil pressure bends the wall inward. A carbon fiber strap bonded vertically across the bow adds that missing resistance, so the wall is stabilized where it stands.
On a basement wall bowing inward, the surface is prepared and each strap is saturated with epoxy and pressed on from the floor to the top of the wall. As the epoxy cures, the strap and wall act as one unit. The straps are anchored at the top and bottom to give the load somewhere to go, so the inspection also checks the floor system and the sill above the wall.
Carbon fiber stops further inward movement and is best suited to walls where the bow is still minor. It does not straighten a bowed wall or remove the water that creates the pressure. A wall with a horizontal crack that keeps widening may have moved too far for straps, and steel anchors set into the soil may fit better.
The symptoms that usually lead to carbon fiber reinforcement are on the foundation repair problem signs page, alongside the other signs that point to the same underlying cause.
How We Install Carbon Fiber Reinforcement
- Step 01
Free Inspection and Diagnosis
We start by confirming that sideways soil pressure is the actual problem and measuring how far the wall has moved. We look at the bow, any cracked block along the bowed section, and how water reaches the wall. In Piedmont clay or on an Asheville hillside, the source of the pressure shapes the recommendation, and we will tell you if a wall has moved too far for carbon fiber to be the right fit.
- Step 02
Confirm Carbon Fiber Is the Right Reinforcement
Carbon fiber suits walls with minor to moderate inward bowing. A wall that has moved further or is under heavier load may be better served by steel beams braced inside the basement or a wall anchor. We confirm whether carbon fiber will hold your wall or whether it needs a different system, then explain the plan and the strap layout before any work begins.
- Step 03
Prepare the Wall Surface
The crew prepares the inside face of the wall where each strap will go so the epoxy can form a strong bond. Loose material and surface coatings in the bonding area are removed, because the strength of the repair comes from a clean, solid connection between the carbon fiber and the wall.
- Step 04
Bond and Anchor the Carbon Fiber Straps
Each strap is saturated with epoxy and pressed onto the wall in a vertical line running from the floor to the top of the wall, spaced across the bowed area. The straps are anchored at the top and bottom so the load transfers into the floor system and the structure above, then the epoxy is left to cure and bond the strap to the wall.
- Step 05
Review the Result and How Water Reaches the Wall
We review the reinforced wall with you and explain what comes next. Sideways pressure is often driven by water in the soil, so we go over what the inspection found about how water reaches the foundation. You get a clear picture of the cause, the repair, and what it does.
How Does Carbon Fiber Reinforce a Bowing Wall?
Carbon fiber straps are bonded to the inside face of the wall with epoxy, running from the floor to the top of the wall. The straps strongly resist being stretched, so as the soil pushes the wall inward, the carbon fiber holds against that load.

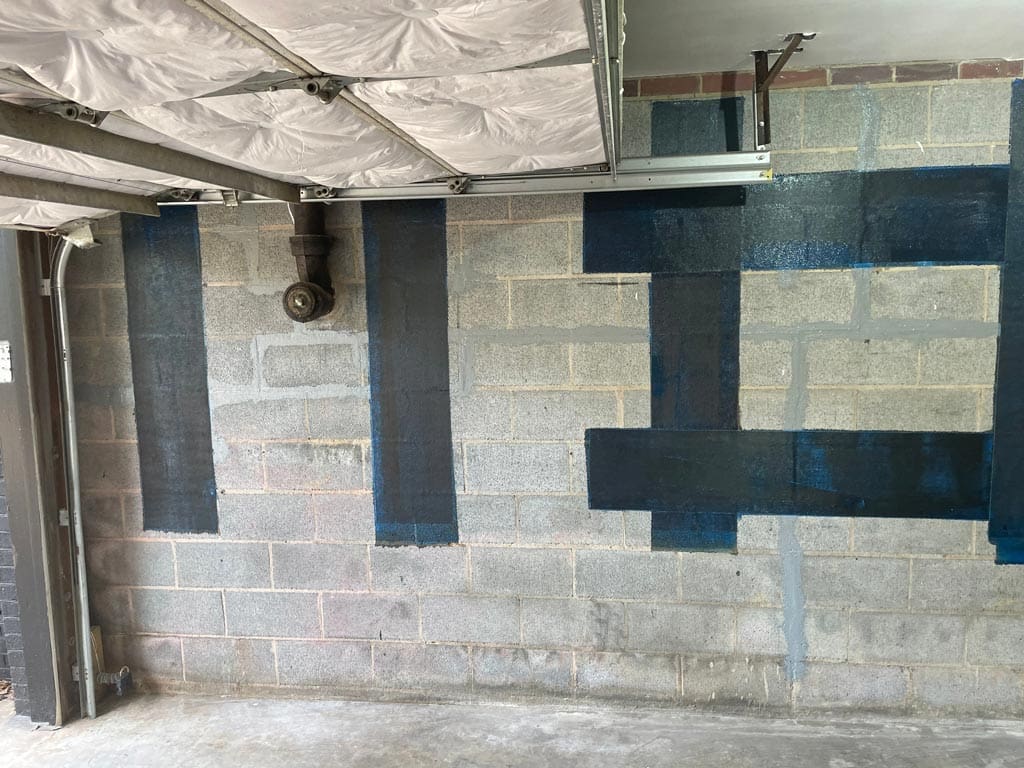

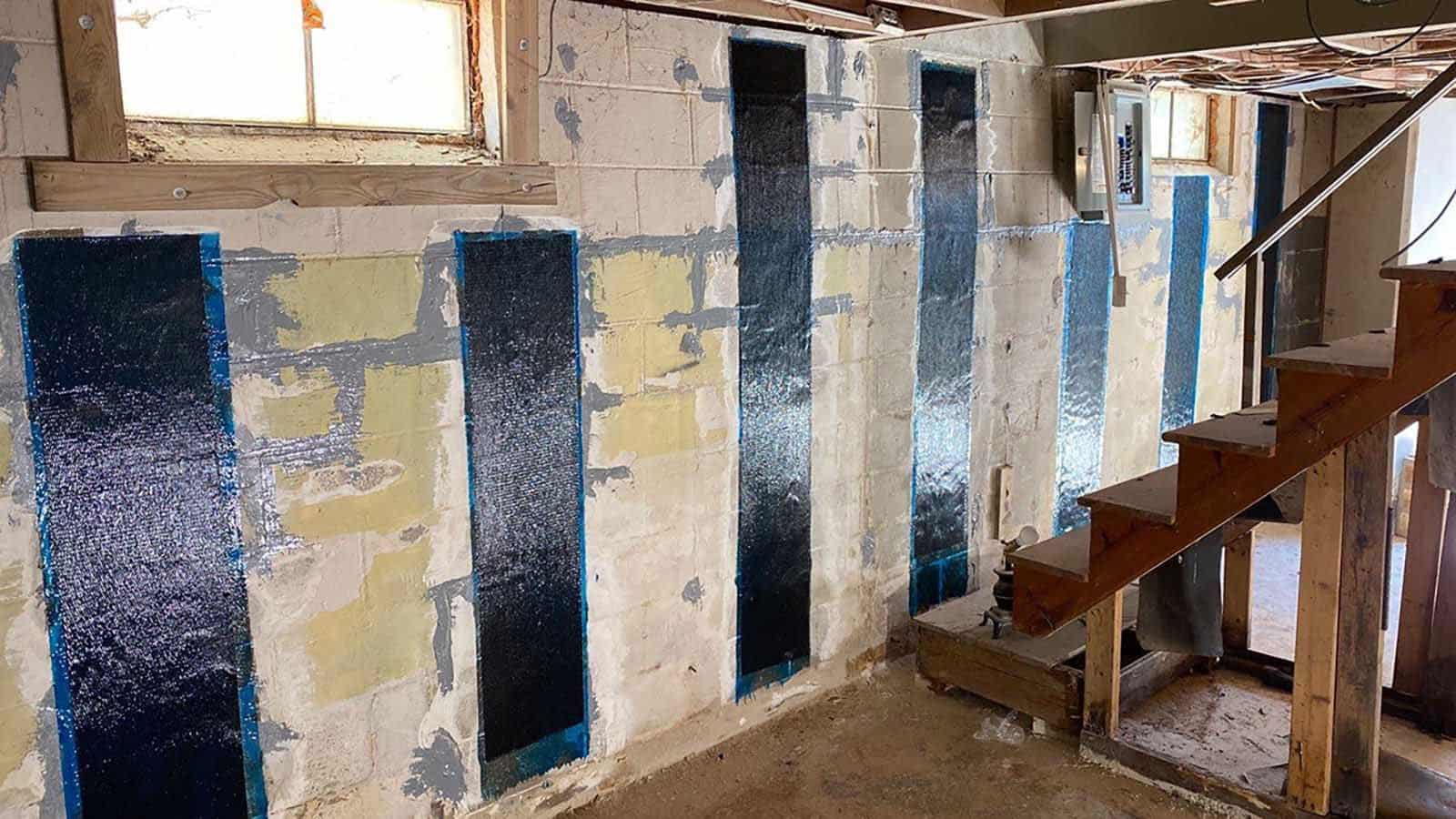

Carbon Fiber Reinforcement on Our Job Sites
Photos from our own crews and projects. Swipe or use the arrows to see more.

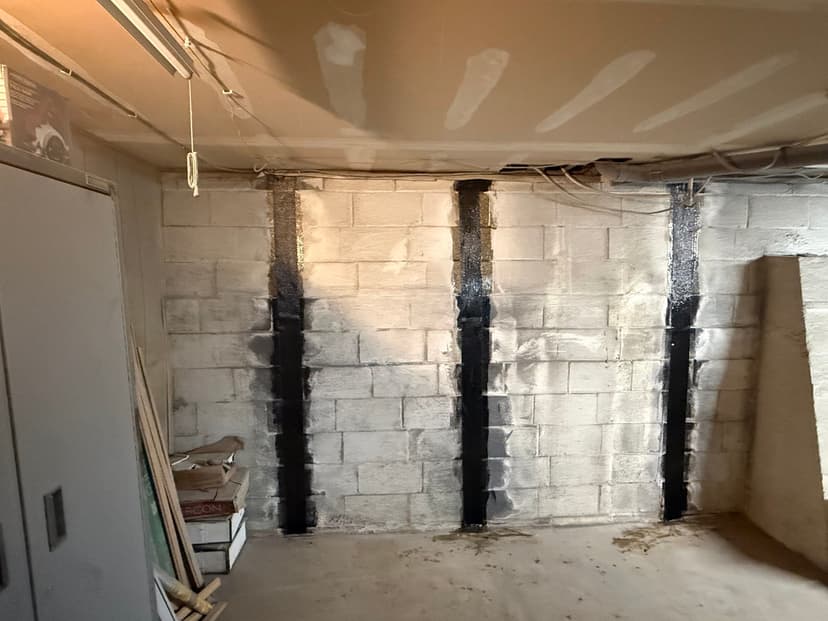

How Carbon Fiber Strapping Is Used on Basement Walls
Care and Expertise From a Team Serving the Carolinas Since 2017
When the fix is carbon fiber reinforcement, our own crews do the work. HydroHelp911 handles foundation repair and related structural and moisture work across North and South Carolina.
An inspector looks at your home, finds the source of the problem, and explains each finding in plain language. There is no obligation.
We are headquartered in Dallas, North Carolina, with eight offices across North and South Carolina.
Foundation repair, crawl space repair and encapsulation, basement waterproofing, framing repair, and concrete leveling are the whole focus of the team.
We have 1,300+ verified Google reviews (4.9 stars) from homeowners across the Carolinas and are BBB A+ Accredited.
For example, helical and push piers carry a lifetime warranty that no additional settlement will occur in the area of installed piers, once the final invoice is paid in full. Read the warranty terms.
Ask your inspector about financing when you get your written estimate. See financing options.
Common Questions About Carbon Fiber Reinforcement
Don't see your question here? Call or fill out our quick online form, and our team will help.
Carbon fiber reinforcement uses strong carbon fiber straps bonded vertically to the inside face of a foundation wall with epoxy. A masonry or concrete wall resists being squeezed well but has little ability to resist being pulled apart, which is what happens when soil pressure bends it inward. The carbon fiber adds that missing strength in tension, so as the soil pushes, the straps hold and the wall is stabilized where it stands. The straps are thin and sit flat against the wall, so the repair takes up little room and a basement wall can usually be painted over afterward.
