Large cracks usually mean the foundation has shifted or water pressure is pushing on it

A wide or growing crack is not a surface flaw. It tells you the structure has moved, or that water in the soil is loading the wall. Here is how to read those cracks across the Carolinas and what a no-pressure inspection looks at.

Let's take the first step toward a healthy home.

A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate. no cost, no pressure.

Book instantly with Driive

BBB Accredited

Fully Insured

"By Your Side" Guarantee

What this symptom means

Large Cracks from Shifting or Water Pressure: diagnosed and explained.

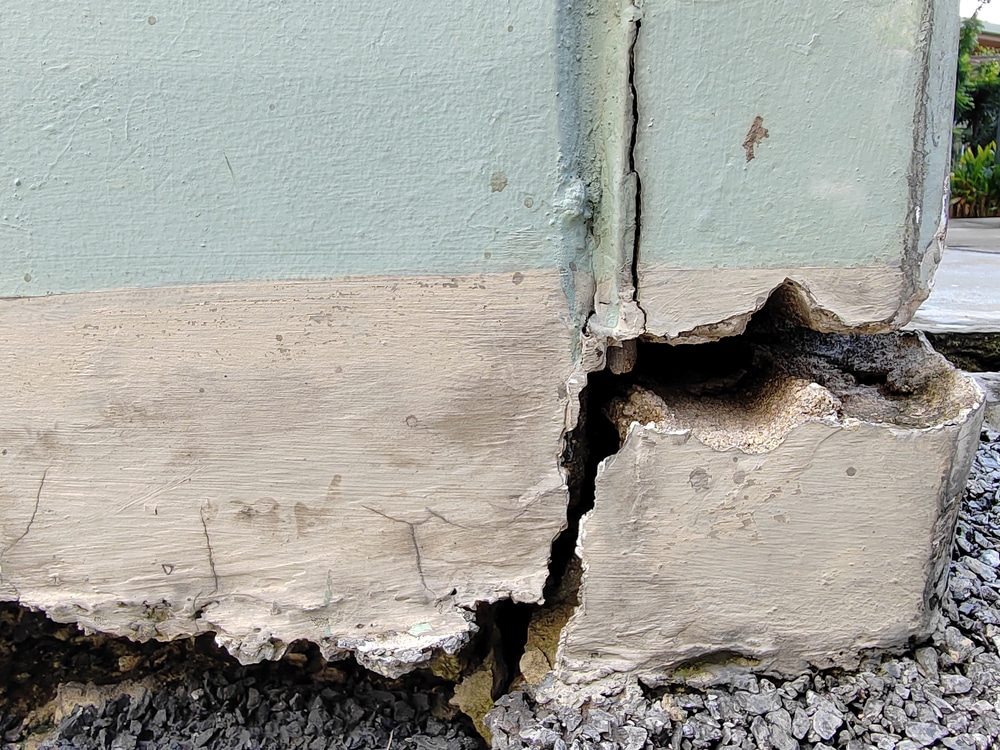

A large foundation crack is one that has grown beyond a thin hairline, typically wider than about a quarter inch, or one where the two sides have shifted so the wall no longer sits flush in plane. Unlike the fine hairline cracks that come from concrete curing and shrinkage in a home's first year, large cracks point to one of two things: the foundation has moved because the soil beneath it shifted, or water pressure in the surrounding soil is pushing against the wall hard enough to crack it. The shape of the crack often hints at the cause. A diagonal crack that climbs from a corner usually follows uneven settlement, where one part of the footing has dropped relative to the rest. A long horizontal crack across a block or poured wall, sometimes with the wall bowing inward, points to lateral water pressure loading the wall from outside. A vertical crack that is widening can come from either driver. What matters most is not the single snapshot but whether the crack is active, meaning still widening or shifting over time, and what is causing the movement. Because the cause sits in the soil and footing below the finished surfaces, you cannot confirm it from inside the house alone. A no-pressure inspection measures how the structure has moved and examines the foundation, crawl space, and the soil and drainage conditions around it to determine whether shifting, water pressure, or both are at work before any repair is discussed.

Catch It Early

Signs That Often Show Up Alongside a Large Foundation Crack

A crack wider than about a quarter inch

Hairline cracks are common and often cosmetic, but a crack you can fit a coin or a fingernail into has moved well past curing shrinkage. Crack width is one of the clearest indicators that the foundation has shifted or is being pushed, and it is worth having evaluated rather than simply sealed.

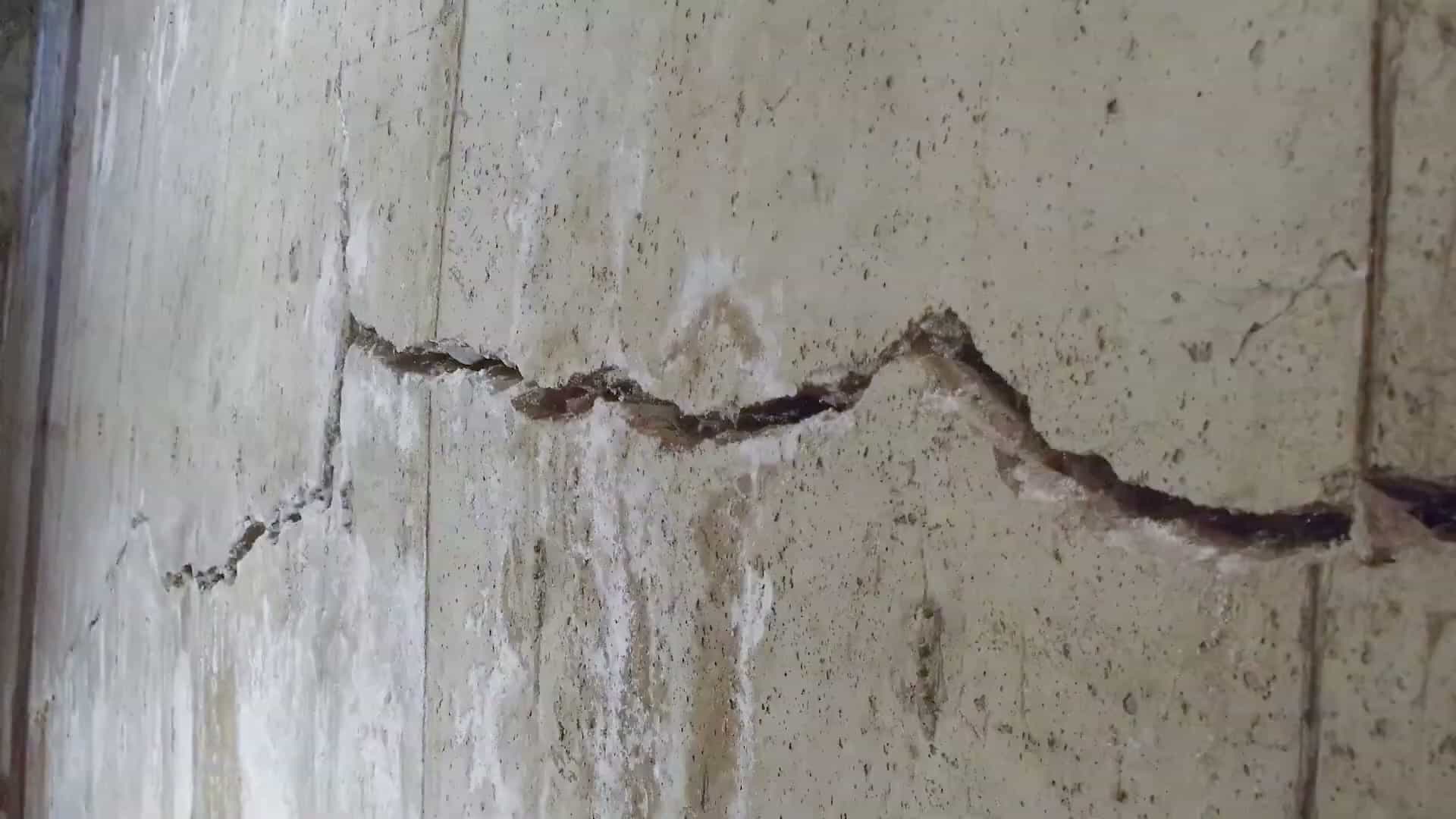

A horizontal crack or a wall that is bowing inward

A long horizontal crack across a basement or block wall, especially one where the wall is bulging or leaning inward, points to lateral water pressure loading the wall from outside. A wall that is no longer plumb is a sign the pressure has progressed and should be evaluated promptly.

Cracks where the two sides no longer line up

If the two faces of a crack have shifted so the wall is offset and no longer flush in plane, the structure has displaced rather than just split. This out-of-plane movement is a stronger sign of active shifting than the crack width alone.

Doors and windows that stick or will not latch

When a foundation moves enough to open a large crack, it also racks the door and window frames slightly out of square. Doors and windows that suddenly stick, drag, or will not latch frequently appear at the same time as a large crack.

Water intrusion or dampness at the crack

Water seeping through a crack, or a damp, efflorescent stain trailing from it after rain, indicates that water and pressure in the soil are reaching the wall. This points toward a moisture and drainage driver that a lasting repair has to address, not just the crack itself.

A crack that is visibly widening over time

A crack that has grown since you first noticed it, or that reopens after being patched, indicates ongoing movement. Tracking whether a crack is stable or active is one of the most useful things an inspection establishes.

Most Common Causes

What causes large cracks from shifting or water pressure in Carolinas homes.

Seasonal clay movement in Piedmont soils

Across the Piedmont, including Charlotte, Huntersville, Matthews, Greensboro, Winston-Salem, and the Triangle, the soil is clay-rich. Clay swells as it absorbs water in wet seasons, then contracts as it dries through summer. That repeated swell-and-shrink cycle loads and unloads the footings season after season, and over years it can settle one part of a foundation more than another. When a section of the foundation drops relative to the rest, the rigid structure above is pulled out of square and the stress concentrates into a large diagonal or vertical crack rather than spreading evenly. This is the most common driver of shifting-related cracks in the region's clay markets.

Hydrostatic water pressure against the wall

When soil around a foundation becomes saturated, the water in it presses outward against the wall. This is called hydrostatic pressure, and it builds as the ground holds more water. On a basement or block foundation wall, sustained lateral pressure can crack the wall along a long horizontal line and, in more advanced cases, bow or lean it inward. A wide horizontal crack with any inward movement of the wall is the signature of this driver, and it is distinct from settlement: here the wall is being pushed sideways rather than dropping. Poor drainage, downspouts discharging against the foundation, and heavy or prolonged rainfall all raise the pressure.

Differential foundation settlement

Large cracks are a classic sign of differential settlement, meaning different parts of the home settle by different amounts rather than evenly. When the soil under one corner or one length of footing compresses, or was never fully compacted when the home was built, that part of the foundation sinks while the rest stays put. The structure has to absorb the difference, and a rigid wall or slab does so by opening a wide crack at the point of greatest stress, often near a corner or an opening. This is why large diagonal cracks frequently appear at the corners of a house and widen toward the top or bottom depending on which way the structure is rotating.

Soil washout and erosion beneath footings

Water moving through or under the soil can carry away the fine particles that give it structure, leaving voids beneath footings. Around Asheville and the mountains, hillside lots and heavy mountain rainfall drive runoff and subsurface water against and under foundations, while the downhill side can lose support to erosion. In the Sandhills around Fayetteville and Pinehurst, sandy soils let water move freely and fines can wash out as it drains. As voids open beneath a footing, the foundation drops into them and the wall above opens a large crack where the support was lost.

High water table and saturated soils on the coast

In coastal markets like Wilmington, Leland, and Brunswick County, a high water table and sandy, saturated soils behave very differently than inland Piedmont clay. Saturated sandy soil has reduced bearing strength, so footings can shift and settle as moisture and water levels change. At the same time, a high water table raises the hydrostatic pressure pushing against below-grade walls. Large cracks here can come from either the loss of bearing strength beneath a footing or the water pressure loading a wall, and often from both, which is why coastal cracks are evaluated against water conditions specifically.

Heat, humidity, and moisture load in SC clay markets

In the SC Upstate around Greenville and the Midlands around Columbia, foothill and Piedmont clay carries a heavy moisture load through hot, humid summers. The same swell-and-shrink behavior that drives Piedmont settlement is at work here, cycling pressure on footings and settling foundations unevenly over time. When that movement concentrates at one point, the structure opens a large crack rather than a network of fine ones, the same way it does in the NC Piedmont clay markets.

Permanent Solutions

How foundation repair specialists actually fix large cracks from shifting or water pressure.

Solving large cracks from shifting or water pressure means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Carolinas homes.

Foundation Repair solutions

Engineered foundation repair solutions for this problem.

Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.

Push Piers

A proven structural method for settled foundations across North and South Carolina, transferring your home's weight onto stable soil deep below the surface.

Helical Piers

Screw-like steel piers driven deep below the active surface soil to support and, where possible, lift a settling foundation across North and South Carolina.

Foundation Underpinning

When the soil near the surface can no longer carry your foundation, underpinning reaches deeper ground to stabilize the structure. Serving homeowners across the greater Charlotte area and the Carolinas.

Regional Context

Why foundation movement across the Carolinas needs a regional diagnosis

Foundation movement behaves differently depending on where your home sits. In the Piedmont around Charlotte, Greensboro, Winston-Salem, and the Triangle, clay-rich soils absorb water in wet seasons and pull away from foundations as they dry, cycling pressure on your footings year after year. On the coast around Wilmington, Brunswick County, and Leland, a high water table and sandy, saturated soils create lateral pressure and settlement that inland clay never produces. In the mountains around Asheville, hillside lots and runoff load one side of a foundation more than the other. That is why our team starts with the soil and slope under your home, not just the crack on the wall.

Piedmont

Clay-rich soil belt

Charlotte to the Triad

Wet / dry

Seasonal moisture swing

Soil expands, then contracts

Coastal

High water table & salt air

Wilmington & Brunswick County

NC + SC

Local, no-pressure crews

Offices across the Carolinas

Piedmont clay and the crack patterns it produces

Much of the Piedmont, from Charlotte through the Triad, sits on clay-rich soil that holds water. Clay absorbs moisture in wet seasons and swells, then contracts in dry periods. That cycle pulls pressure on and off a foundation, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently across the region.

Homes built on uncompacted clay backfill show the highest incidence of progressive settlement cracking in our inspection work. The same clay that looks stable through a normal year can move enough during a long wet spring or a hard summer drought to open a crack that keeps widening.

Coastal and Sandhills soils behave differently

In Wilmington, Brunswick County, and Leland, high water tables, saturated and sandy soils, and salt air drive a different set of failure modes than inland clay. Lateral water pressure, erosion, and corrosion are the drivers here, which is why coastal foundation and seawall work needs an approach that inland techniques don't account for.

Across the Sandhills near Fayetteville and Pinehurst, sandy soils drain differently again, and in the mountains around Asheville, hillside foundations, slopes, and heavy rainfall change the picture once more. We diagnose to the soil and climate of the specific home, not to the Carolinas generically.

"When someone calls about a big crack, the first thing we work out is whether the foundation dropped or whether water is pushing on the wall, because those are two completely different problems with two different fixes. We measure the structure and look at the soil and drainage before we say a word about repairs. Sealing a crack without stabilizing what moved or relieving the water just means it comes right back. If the crack is stable and not a structural concern, we will tell you that too. No pressure, no upsell."

Cory Parks

Owner, HydroHelp911

Why Choose HydroHelp911

Care and expertise from a team that does this every day.

HydroHelp911 is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Carolinas.

Specialized expertise.

Foundation repair, waterproofing, and concrete leveling are our entire focus. not a sideline.

Locally owned and operated.

Deep experience with Carolinas soils, basements, and weather conditions.

BBB A+ rated.

Accredited with an A+ rating and thousands of homeowner reviews across the Carolinas.

Warrantied solutions.

Lifetime warranties available on many services, backed by the original installer.

HYDROHELP911

Why hire HydroHelp911.

MEET THE TEAM · 2 MIN

Frequently Asked Questions

Answers to common questions about Large Cracks from Shifting or Water Pressure.

Don't see your question here? Our team is happy to help. Reach out anytime.

There is no single number that settles it, but a useful rule of thumb is that cracks wider than about a quarter inch, cracks where the two sides have shifted out of line, and any horizontal crack on a basement or block wall deserve a closer look. Thin hairline cracks are often the result of concrete curing and shrinkage and are usually cosmetic. The more telling factor than width alone is whether the crack is active, meaning still widening or shifting over time. Because you cannot see from the surface how far the foundation has moved or whether it is still moving, an inspection that measures the structure is the reliable way to know how serious a crack is.

They tend to look different and they are repaired differently. A crack from shifting, or settlement, usually runs diagonally from a corner or vertically and comes from one part of the foundation dropping relative to the rest as the soil beneath it moves. A crack from water pressure is typically a long horizontal line across a basement or block wall, often with the wall bowing or leaning inward, and comes from saturated soil pushing against the wall from outside. Settlement pulls a foundation down, while hydrostatic pressure pushes a wall sideways. Part of an inspection is telling the two apart, since underpinning a settling footing and relieving water pressure on a wall are very different repairs.

The driver shifts with the local geology. Across the Piedmont, around Charlotte, Greensboro, Winston-Salem, and the Triangle, and through the SC Upstate and Midlands, clay-rich soil swells when wet and shrinks when dry, cycling pressure on footings and settling them unevenly until the structure opens a large crack. Around Asheville and the mountains, hillside lots and heavy rainfall drive erosion and runoff that wash out support and push water against foundations. In coastal markets like Wilmington and Leland, a high water table and saturated sandy soils both reduce bearing strength and raise the water pressure on below-grade walls. An inspection identifies which of these is at work on your home.

It can be repaired at the cause rather than only sealed. Filling or injecting a crack covers the symptom, and if the foundation is still shifting or the wall is still being pushed by water, the crack tends to reopen. The lasting approach is to first stabilize whatever is moving, by underpinning a settling foundation with piers or by reinforcing and relieving the load on a wall that water pressure is pushing inward, and to address the water and drainage conditions that contributed. Once the structure is no longer moving, the crack itself can be repaired so the wall is sound.

In most cases homeowners continue living in the home while the crack is evaluated and repaired. The concern with leaving a large crack unaddressed is that the underlying cause, whether shifting soil or water pressure, usually continues, so the crack tends to widen and related signs like sticking doors, water intrusion, and a bowing wall progress over time. Having the foundation inspected lets you understand whether the movement is active, how serious it is, and the repair options, so you can decide on a plan at your own pace. The inspection is no-pressure, and HydroHelp911 offers financing options for repairs.

Pricing ranges above are general estimates only and are not project quotes. A precise figure is provided on each written estimate after on-site inspection.
