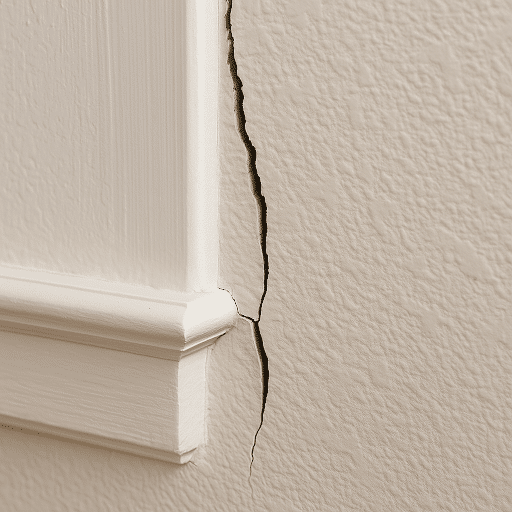

What this symptom means

Cracks in Door Frames, Ceilings, and Corners: diagnosed and explained.

Cracks in door frames, ceilings, and corners are the splits and seams that open up at the most predictable weak points inside a home. They cluster at the upper corners of door and window openings, along the line where a wall meets the ceiling, in the corners where two walls come together, and across ceilings over an interior beam. These locations crack first for a simple reason. When a structure shifts, stress concentrates wherever the framing is interrupted or changes direction, and the rigid finish surface fastened to that framing has to split somewhere to absorb the movement. The crack is a symptom, not the underlying problem. The plaster or drywall almost never fails on its own. What usually moves is the framing and the foundation behind it. When a foundation settles or heaves unevenly, the walls and ceilings above it rack slightly out of square, and the corner of a door frame is exactly where that racking shows up as a diagonal crack. There is an important fork here. Some of these cracks are cosmetic and expected. New homes settle, framing lumber dries and shrinks for the first year or two, and seasonal humidity swells and releases the studs, so a thin, stable hairline at a corner or along a ceiling seam is often harmless. Other cracks point to foundation or framing movement that does not reverse on its own. Diagonal cracks running out of door frame corners, cracks wider than about a sixteenth of an inch, cracks where one side has pushed out of plane from the other, and cracks that keep coming back after they are patched are the patterns that warrant a closer look. Because a cosmetic crack and a structural one can look similar from inside a room, the reliable way to tell them apart is to inspect the cracks alongside the foundation, the crawl space, and the alignment of the doors and floors. That is what a no-pressure inspection is for.

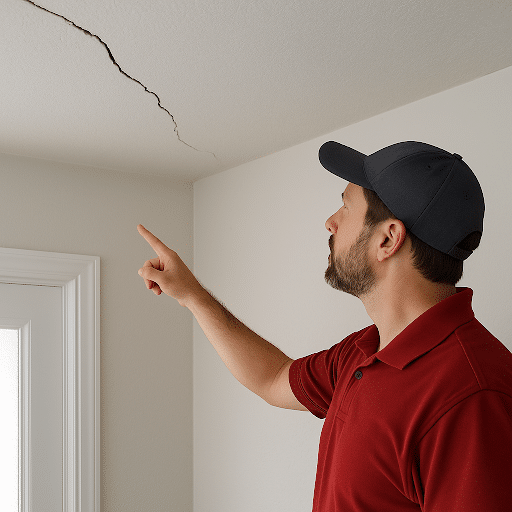

Catch It Early

Other Signs That Often Show Up Alongside Cracks at Door Frames, Ceilings, and Corners

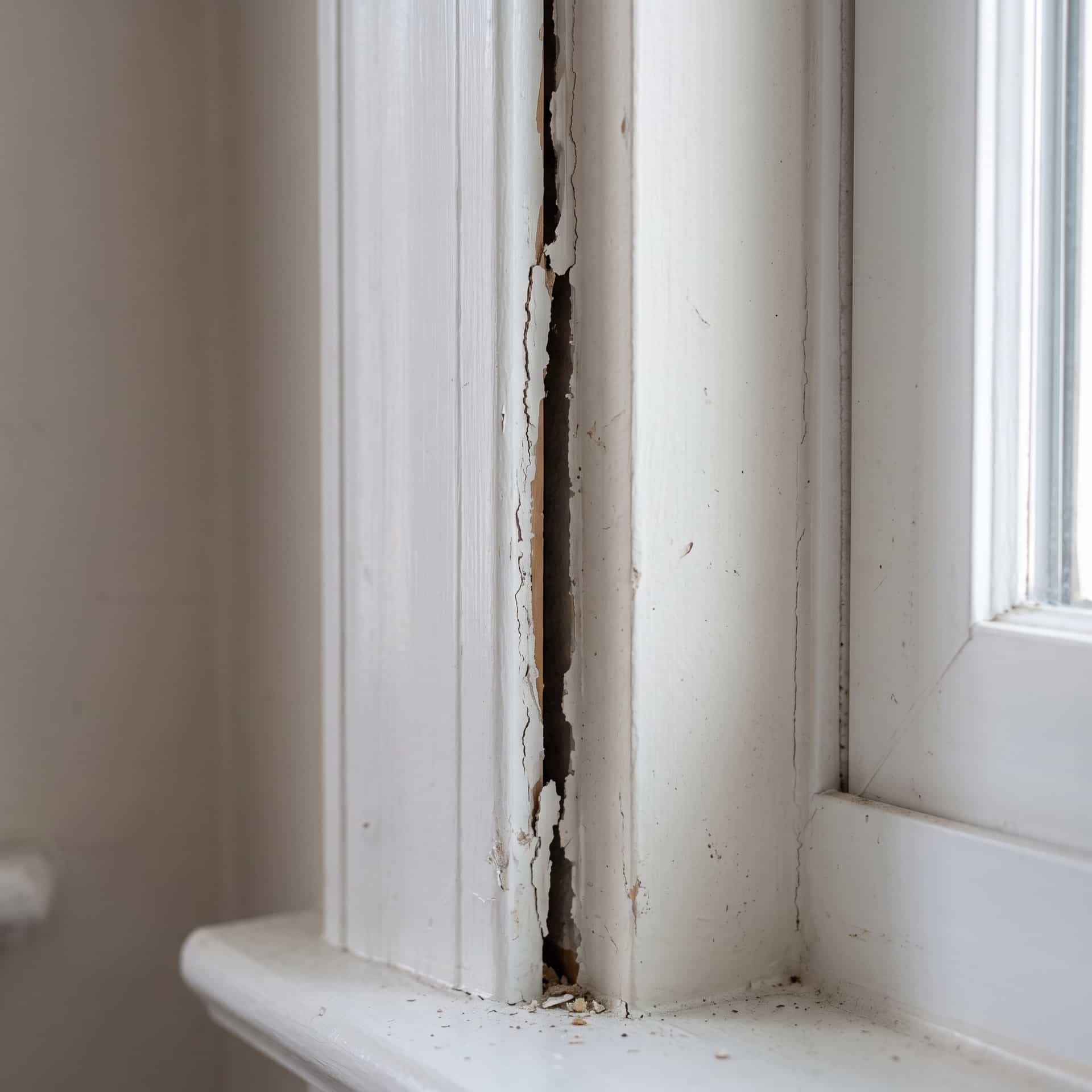

Doors and windows that stick or will not latch

The same movement that cracks the corner of a door frame also racks the frame itself slightly out of square. Doors that suddenly drag, stick, or no longer latch, and windows that become hard to operate, frequently appear at the same time as diagonal cracks climbing out of those openings.

Cracks that run diagonally from corners rather than straight along seams

A thin, vertical crack along a taped ceiling seam is often cosmetic shrinkage. A crack that runs diagonally outward from the upper corner of a door frame, or diagonally across a room corner, is the pattern most associated with the structure racking out of square, because that is where stress concentrates when a wall is pulled off plumb.

Cracks where one side has pushed out of plane

A crack at a corner or ceiling where you can feel or see that one side has shifted forward or back relative to the other, rather than simply splitting flat, indicates the structure behind it has moved rather than the surface alone having cracked. That out-of-plane displacement is a sign worth having evaluated.

Cracks that keep returning after patching

Cracks at door frames, ceilings, or corners that were filled, taped, and painted, then reopened in the same place within a season or two, suggest the movement underneath is ongoing. A cosmetic crack stays closed once repaired, while a structural one tends to come back because the cause was never addressed.

Sloping, dipping, or bouncy floors

Cracks at door frames and ceilings often travel with uneven floors. When a foundation or crawl space support moves enough to crack the corners and openings, the floor in that part of the home has often dropped along with it, so a slope or a soft spot underfoot points to the same underlying movement.

Stair-step cracks in exterior brick or block

Interior cracks at door frames and corners and exterior masonry cracks are often two views of the same movement. Diagonal stair-step cracks following the mortar joints in brick veneer or a block foundation wall commonly appear alongside diagonal cracks at door frames inside, both pointing back to the foundation.

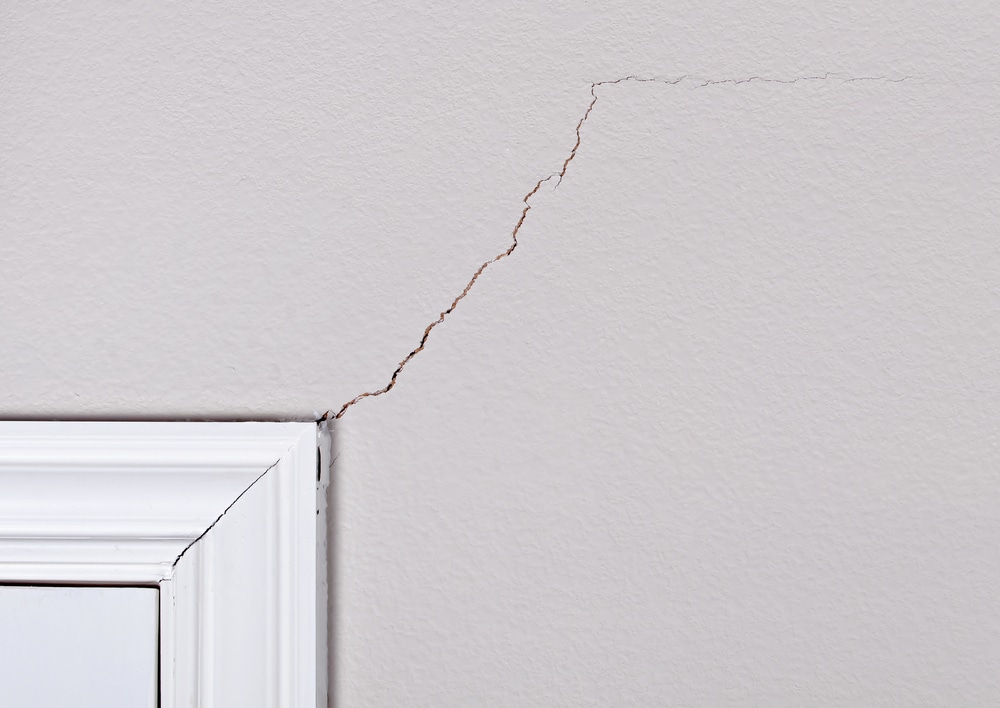

Most Common Causes

What causes cracks in door frames, ceilings, and corners in Carolinas homes.

Seasonal clay movement in Piedmont soils

Across the Piedmont, including Charlotte, Huntersville, Matthews, Greensboro, Winston-Salem, and the Triangle, the soil is clay-rich. Clay absorbs water and swells during wet seasons, then contracts as it dries through the summer. That repeated swell-and-shrink cycle loads and unloads the footings season after season. Over years it can settle one part of a foundation more than another, racking the wall above out of square. The corner of a door frame is where that racking concentrates, so diagonal cracks climbing out of door frame corners, paired with corner and ceiling cracks nearby, are a common sign of this pattern in the region's clay markets. These cracks often widen during the dry season and partly close when the soil takes on water again.

Differential foundation settlement

When the soil beneath one part of a footing compresses, or was never fully compacted during construction, that section of the foundation sinks lower than the rest. This is differential settlement, meaning different parts of the home move by different amounts rather than evenly. As one corner or wall drops, the framing in that area goes out of plumb, and the door frames, ceiling lines, and wall corners attached to it crack. Because the movement is uneven, settlement-driven cracks tend to cluster in one part of the house, often on one corner or one side, rather than appearing uniformly throughout.

Crawl space support failure beneath the floor

Many Carolinas homes sit over crawl spaces where interior loads are carried by a girder beam resting on support piers. If a pier was undersized, set on a poor footing, or has shifted as the soil beneath it moved, the beam sags and the floor and walls built on top of it drop. A door frame or ceiling line above a sagging interior beam often cracks even when the perimeter foundation looks fine from outside. Ceiling cracks that run along the line of an interior load-bearing wall, and door frames that crack on interior partitions, are worth tracing back to the support below them.

Wood rot and weakened framing from crawl space moisture

Humid Carolinas summers and ground moisture vapor keep many crawl spaces damp. Sustained moisture weakens wooden girders, joists, and sill plates, and weakened framing flexes and settles under load. As the framing that holds a door opening or carries a ceiling loses its shape, the finish surface attached to it cracks at the corners. This is why cracks at door frames and ceilings frequently show up together with a moisture problem in the crawl space, and why a lasting repair often has to address the moisture as well as the structure.

Normal framing shrinkage and seasonal humidity

Not every crack at a corner or ceiling points to the foundation. New homes settle in their first years, framing lumber continues to dry and shrink for a year or two after construction, and seasonal humidity swells and releases the studs through the year. Thin, stable hairline cracks at a wall corner, along a ceiling seam, or at the top of a door frame are often this benign, cosmetic movement rather than structural settlement. Part of an honest inspection is ruling this in or out, because a hairline that has been stable for years is a very different situation than a widening diagonal crack out of a door frame corner.

Hillside loads, sandy soils, and coastal saturation

Outside the Piedmont, the soil drivers shift. Around Asheville and the mountains, hillside lots, slopes, and heavy rainfall load and erode foundations unevenly, moving the framing above them. In the Sandhills around Fayetteville and Pinehurst, sandy soils settle and shift on their own terms as fines wash out from beneath footings. In coastal markets like Wilmington, Leland, and Brunswick County, a high water table and saturated, sandy soils reduce the ground's bearing strength and let footings move. In each setting, the foundation movement below racks the walls and reveals itself as cracking at the door frames, ceilings, and corners above.

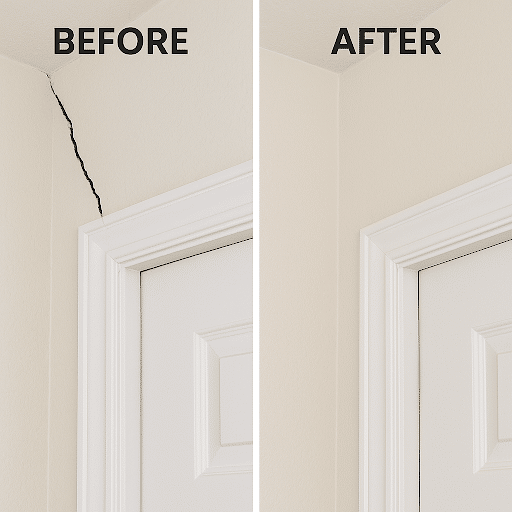

Permanent Solutions

How foundation repair specialists actually fix cracks in door frames, ceilings, and corners.

Solving cracks in door frames, ceilings, and corners means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Carolinas homes.

Foundation Repair solutions

Engineered foundation repair solutions for this problem.

Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.

Push Piers

A proven structural method for settled foundations across North and South Carolina, transferring your home's weight onto stable soil deep below the surface.

Helical Piers

Screw-like steel piers driven deep below the active surface soil to support and, where possible, lift a settling foundation across North and South Carolina.

Foundation Underpinning

When the soil near the surface can no longer carry your foundation, underpinning reaches deeper ground to stabilize the structure. Serving homeowners across the greater Charlotte area and the Carolinas.

Regional Context

Why foundation movement across the Carolinas needs a regional diagnosis

Foundation movement behaves differently depending on where your home sits. In the Piedmont around Charlotte, Greensboro, Winston-Salem, and the Triangle, clay-rich soils absorb water in wet seasons and pull away from foundations as they dry, cycling pressure on your footings year after year. On the coast around Wilmington, Brunswick County, and Leland, a high water table and sandy, saturated soils create lateral pressure and settlement that inland clay never produces. In the mountains around Asheville, hillside lots and runoff load one side of a foundation more than the other. That is why our team starts with the soil and slope under your home, not just the crack on the wall.

Piedmont

Clay-rich soil belt

Charlotte to the Triad

Wet / dry

Seasonal moisture swing

Soil expands, then contracts

Coastal

High water table & salt air

Wilmington & Brunswick County

NC + SC

Local, no-pressure crews

Offices across the Carolinas

Piedmont clay and the crack patterns it produces

Much of the Piedmont, from Charlotte through the Triad, sits on clay-rich soil that holds water. Clay absorbs moisture in wet seasons and swells, then contracts in dry periods. That cycle pulls pressure on and off a foundation, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently across the region.

Homes built on uncompacted clay backfill show the highest incidence of progressive settlement cracking in our inspection work. The same clay that looks stable through a normal year can move enough during a long wet spring or a hard summer drought to open a crack that keeps widening.

Coastal and Sandhills soils behave differently

In Wilmington, Brunswick County, and Leland, high water tables, saturated and sandy soils, and salt air drive a different set of failure modes than inland clay. Lateral water pressure, erosion, and corrosion are the drivers here, which is why coastal foundation and seawall work needs an approach that inland techniques don't account for.

Across the Sandhills near Fayetteville and Pinehurst, sandy soils drain differently again, and in the mountains around Asheville, hillside foundations, slopes, and heavy rainfall change the picture once more. We diagnose to the soil and climate of the specific home, not to the Carolinas generically.

"When someone calls about cracks at their door frames or up in the corners, the first thing we sort out is whether it is just the house settling and the seasons working the framing, or whether the structure behind it has actually moved. Those corners and door frames are simply where a home shows movement first, so they are worth paying attention to, but a homeowner deserves to know which conversation they are in before anyone talks about repairs. If it is cosmetic, we will say so and you can patch it. If the foundation has shifted, we measure the whole home and show you exactly what moved. No pressure and no upsell either way."

Cory Parks

Owner, HydroHelp911

Why Choose HydroHelp911

Care and expertise from a team that does this every day.

HydroHelp911 is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Carolinas.

Specialized expertise.

Foundation repair, waterproofing, and concrete leveling are our entire focus. not a sideline.

Locally owned and operated.

Deep experience with Carolinas soils, basements, and weather conditions.

BBB A+ rated.

Accredited with an A+ rating and thousands of homeowner reviews across the Carolinas.

Warrantied solutions.

Lifetime warranties available on many services, backed by the original installer.

HYDROHELP911

Why hire HydroHelp911.

MEET THE TEAM · 2 MIN

Frequently Asked Questions

Answers to common questions about Cracks in Door Frames, Ceilings, and Corners.

Don't see your question here? Our team is happy to help. Reach out anytime.

No, and that distinction matters. Many of these cracks are cosmetic. New homes settle, framing lumber dries and shrinks for a year or two after construction, and seasonal humidity swells and releases the studs, so thin, stable hairlines at a corner or along a ceiling seam are often harmless. Other cracks point to foundation or framing movement that does not reverse on its own, especially diagonal cracks running out of door frame corners, cracks wider than about a sixteenth of an inch, cracks where one side has pushed out of plane, and cracks that keep returning after they are patched. Because a cosmetic crack and a structural one can look similar from inside a room, an inspection that looks at the cracks alongside the foundation, the doors, and the floors is the reliable way to tell which one you have.

Because those are the weak points in the structure. A door frame interrupts the wall framing, a corner is where two walls change direction, and a ceiling line is where the wall framing meets the ceiling framing. When a home racks slightly out of square from foundation or framing movement, stress collects at these interruptions, and the rigid drywall or plaster splits there first. The flat middle of a wall has continuous backing and tends to crack later, if at all. This is why a diagonal crack out of a door frame corner is one of the earliest and most telling signs that the structure has moved.

A few patterns help. Thin, vertical hairlines along a ceiling seam or at a corner that have stayed the same for years, with no sticking doors and no sloping floors, usually point to ordinary framing shrinkage and seasonal movement. Cracks that run diagonally from the corners of door frames, that are widening over time, where one side has shifted out of plane from the other, or that reopen in the same spot after being patched are more consistent with foundation or framing movement. Several of these signs appearing together, or a crack paired with a door that has started to stick, is a stronger indication. These are clues rather than a diagnosis, which is why measuring the floor elevations and inspecting the foundation is what actually confirms the cause.

The drivers shift with the region. In the Piedmont, around Charlotte, Greensboro, Winston-Salem, and the Triangle, clay-rich soils swell when wet and shrink when dry, cycling pressure on footings and settling them unevenly over time, which racks the walls and cracks the door frames, ceilings, and corners above. Around Asheville and the mountains, hillside lots and heavy rainfall load and erode foundations unevenly. In the Sandhills near Fayetteville and Pinehurst, sandy soils shift as fines wash out beneath footings. In coastal markets like Wilmington and Leland, a high water table and saturated sandy soils reduce the ground's bearing strength. Separately, humid summers and damp crawl spaces are common statewide, and that moisture weakens framing and contributes to cracking on its own. Many Carolinas homes experience some combination, which is exactly why the cause has to be confirmed rather than assumed.

It depends on the cause, and that is why we diagnose first. If the cracks are cosmetic framing shrinkage or seasonal movement, patching and repainting them addresses the surface, and they may still move slightly with the seasons but do not signal a structural issue. If the cause is foundation or framing movement, simply patching the corner or door frame covers the symptom and the crack tends to reopen in the same place because the structure behind it is still shifting. The lasting approach is to stabilize what moved first, settlement is typically addressed with piers and a sagging interior with reinforced crawl space supports, and then repair the finish once it is no longer moving. An inspection determines which cause applies before any repair.

In most cases homeowners continue living in the home while the cracks are evaluated and any repairs are made. The concern with leaving structural cracks unaddressed is that the underlying movement usually continues, so the cracks tend to widen and related signs like sticking doors and sloping floors progress over time. Having it inspected lets you find out whether the cracks are harmless cosmetic movement or active structural movement, and decide on a plan at your own pace, without pressure. HydroHelp911 offers financing options when repairs are needed.

Pricing ranges above are general estimates only and are not project quotes. A precise figure is provided on each written estimate after on-site inspection.

Other foundation repair warning signs to watch for.

If you see one, it's worth checking for the others. Most foundation problems show up as more than one symptom.

Bouncing Floors

Bouncing floors have a feel you notice before you can see anything. A floor flexes underfoot as you cross a hallway, dishes rattle in a cabinet when someone walks past, or a specific spot in a room gives slightly with each step. The bounce is often worse over the middle of a room or along a particular run of floor rather than everywhere at once. Bouncing floors are a symptom, not the root problem. The floor covering itself is rarely the issue. What has usually moved is the structure carrying the floor: a girder beam in the crawl space that has begun to sag, floor joists that have weakened, a support pier that has shifted or settled, or a foundation that has dropped under one part of the home. Because that support sits below the finished floor, the reliable way to know what is happening is to go underneath, inspect the framing and supports, and measure the floor elevations across the structure. That is what a no-pressure inspection is for.

Learn More

Bowing Walls

A bowing wall is a foundation or basement wall that has bent, curved, or leaned out of its original vertical plane under sideways pressure from the soil behind it. Foundation walls are built to hold back the earth and carry the weight of the house above, but they are far stronger against downward load than against sideways, or lateral, force. When the soil outside the wall pushes inward harder than the wall can resist, the wall begins to give. On a poured concrete wall this often shows as a horizontal crack across the middle and an inward bulge. On a concrete block or brick wall it usually shows as a horizontal or stair step crack along the mortar joints, with the wall leaning in at the top, sliding in at the base, or bulging through the center. Bowing is different from a sinking or settling foundation. Settlement is the footing dropping straight down, while bowing is the wall being pushed sideways, and the two are stabilized in different ways. The amount a wall has moved matters a great deal. A wall that is out of plumb by a small amount and has been stable for years is a different situation than one that is visibly bulging, has a widening horizontal crack, or has shifted more than an inch or two. Because the force comes from the soil and water on the outside of the wall, you cannot judge from inside the basement alone how far the wall has moved or whether it is still moving. A no-pressure inspection measures the wall's deflection, examines the soil and drainage conditions around it, and identifies the cause before any repair is discussed.

Learn More

Ceiling Gaps

A ceiling gap is a visible separation that opens along the joint where the top of an interior wall meets the ceiling above it. You might see a thin dark line appear over a wall that used to sit tight against the ceiling, crown molding or trim pulling down and away from the drywall, or a corner of a room where the ceiling and two walls no longer meet cleanly. These gaps tend to open gradually and run in a straight line along the top of the wall, which is what sets them apart from the random hairlines that show up elsewhere in drywall. A ceiling gap is a symptom, not the root cause. The ceiling and the wall are rarely the problem themselves. What has usually moved is the framing that ties them together, and the foundation or supports beneath it. When part of a foundation settles, or an interior support sags, the walls and the floor system attached to it drop while the ceiling framing above stays put, and the joint between them is pulled open. There is an important fork here. One specific cause of a wall-to-ceiling gap is benign and seasonal: truss uplift, where the roof trusses in an attic arch upward in cold, dry winter months and settle back in humid summer months, lifting the ceiling slightly and opening a gap at interior walls that closes again when the weather turns. A gap that opens every winter and closes every summer, with no other signs, usually traces to this. Other ceiling gaps point to foundation or framing movement that does not reverse on its own and tends to widen over time. Because seasonal truss uplift and structural settlement can look similar at the joint, the reliable way to tell them apart is to look at the gap alongside the foundation, the crawl space, and the alignment of the walls and floors across the home. That is what a no-pressure inspection is for.

Learn More

Cracked Block Foundation

A cracked block foundation is a fracture that runs through the mortar joints between concrete blocks, through the blocks themselves, or through both, in a concrete masonry unit (CMU) foundation wall. The pattern of the crack is the most important clue to what is happening below. A crack that steps diagonally up the mortar joints from one block to the next, in a staircase shape, usually points to differential settlement, meaning one part of the foundation has dropped relative to the rest. A long horizontal crack running along a single mortar course, often near the middle or lower third of the wall, usually points to lateral soil pressure pushing the wall inward, and it frequently appears together with the wall bowing or leaning. Vertical cracks tend to show up where two sections of wall pull apart or at the edge of an opening. Because a hollow block wall is strong in compression but weak in bending, it cannot flex when the ground moves, so it splits along the joints instead. A cracked block foundation is a symptom, not the underlying problem. The width of the crack and whether the two sides have shifted out of plane say a lot about how much movement has occurred. A hairline crack that has been stable for years is a different situation than a crack wider than a quarter inch where the wall has shifted out of line or started to bow. Because the cause sits in the soil and footing around the wall, the only reliable way to know what is happening is to inspect the foundation and measure how the structure has moved, which is what a no-pressure inspection is for.

Learn More

Cracked Bricks

Cracked bricks are fractures that run through the brick units themselves, through the mortar joints between them, or through both, on a home's exterior brick veneer or a brick foundation wall. The cracks can be diagonal, vertical, or horizontal, and they tend to concentrate near corners and around windows and doors, because that is where stress collects when a wall is pulled out of square. Brick is strong in compression but weak in tension and bending, so when the foundation below the wall settles unevenly, the wall cannot flex and the brick splits instead. A crack that follows the mortar in a diagonal staircase usually points to differential settlement below, while a long horizontal crack low on a brick foundation wall often points to soil pushing inward against the wall. Cracked bricks are a symptom, not the underlying problem, and the width of the crack and whether the two sides have shifted out of plane say a lot about how much movement has happened. A hairline crack that has been stable for years is a different situation than a crack wider than a quarter inch where the brick faces no longer line up. Because the cause sits in the soil and footing below the wall, the only reliable way to know what is happening is to inspect the foundation and measure how the structure has moved, which is what a no-pressure inspection is for.

Learn More

Cracks in Floor Tiles and Grout

Cracks in floor tiles and grout usually show up in one of a few ways. You might see a single tile crack near a doorway or a heavy fixture, grout lines splitting and crumbling along a seam, tiles that have loosened and pop or sound hollow when you tap them, or a crack that tracks in a straight or diagonal line across several tiles in a row. Tile and grout are brittle and rigid by design, so they do not bend with the floor. When the surface beneath them moves even slightly, the tile and the grout joint are where that movement shows first. Not every cracked tile means a foundation problem. A tile can crack from an impact, from a poor installation over a flexing subfloor, from missing expansion joints, or from grout that was mixed or cured improperly. What separates a cosmetic issue from a structural one is the pattern. A crack that runs in a line across multiple tiles, grout splitting along that same path, tiles loosening across a whole area rather than in one spot, or cracking that appears alongside a sloping floor and sticking doors points to movement underneath rather than a single bad tile. The tile and grout are a symptom, not the root cause. The crack is the finished floor reacting to the slab or the floor framing below it, most often soil movement beneath a slab or settlement in the foundation that supports the structure. Because the cause sits under the surface you can see, the reliable way to know what is happening is to measure floor elevations across the home and inspect the slab, the foundation, the crawl space, and the soil conditions, which is what a no-pressure inspection is for.

Learn More
