What this symptom means

Ceiling Gaps: diagnosed and explained.

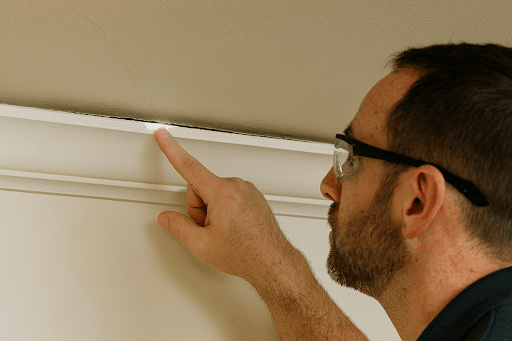

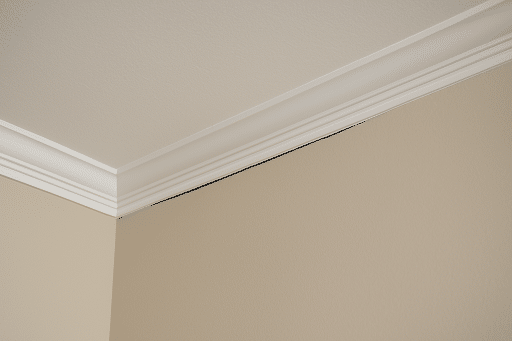

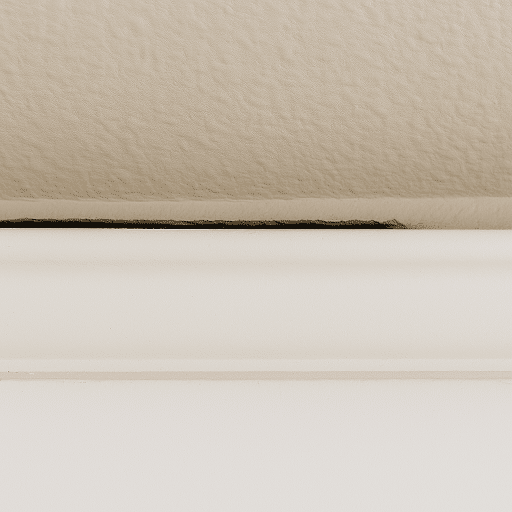

A ceiling gap is a visible separation that opens along the joint where the top of an interior wall meets the ceiling above it. You might see a thin dark line appear over a wall that used to sit tight against the ceiling, crown molding or trim pulling down and away from the drywall, or a corner of a room where the ceiling and two walls no longer meet cleanly. These gaps tend to open gradually and run in a straight line along the top of the wall, which is what sets them apart from the random hairlines that show up elsewhere in drywall. A ceiling gap is a symptom, not the root cause. The ceiling and the wall are rarely the problem themselves. What has usually moved is the framing that ties them together, and the foundation or supports beneath it. When part of a foundation settles, or an interior support sags, the walls and the floor system attached to it drop while the ceiling framing above stays put, and the joint between them is pulled open. There is an important fork here. One specific cause of a wall-to-ceiling gap is benign and seasonal: truss uplift, where the roof trusses in an attic arch upward in cold, dry winter months and settle back in humid summer months, lifting the ceiling slightly and opening a gap at interior walls that closes again when the weather turns. A gap that opens every winter and closes every summer, with no other signs, usually traces to this. Other ceiling gaps point to foundation or framing movement that does not reverse on its own and tends to widen over time. Because seasonal truss uplift and structural settlement can look similar at the joint, the reliable way to tell them apart is to look at the gap alongside the foundation, the crawl space, and the alignment of the walls and floors across the home. That is what a no-pressure inspection is for.

Catch It Early

Other Signs That Often Show Up Alongside Ceiling Gaps

A gap that stays open year-round rather than closing in summer

A wall-to-ceiling gap that opens in winter and closes in summer points to seasonal truss uplift. A gap that stays open through the warm, humid months, or that gets steadily wider year over year, is more consistent with foundation or framing movement that does not reverse on its own.

Sloping, dipping, or bouncy floors in the same room

A ceiling gap and uneven floors are close companions. When a foundation or crawl space support drops a wall far enough to separate it from the ceiling, the floor in that part of the home has usually dropped with it, so a slope or a soft spot underfoot beneath the gap points to the same underlying movement.

Doors and windows that stick or will not latch

The same movement that pulls a wall down from the ceiling also racks the door and window frames in that area slightly out of square. Doors that suddenly drag or no longer latch, and windows that become hard to operate, frequently appear at the same time as a ceiling gap in the same part of the home.

Diagonal cracks at the corners of doors and windows

As a wall is pulled out of square by movement below it, stress concentrates at the openings. Diagonal cracks running outward from the upper corners of door and window frames often appear around the same time a structural ceiling gap opens, both tracing back to the same shift in the framing.

Crown molding or trim separating from the wall or ceiling

Crown molding spans the wall-to-ceiling joint, so it is often the first place a separation becomes obvious. Molding that has pulled down off the ceiling, opened at a mitered corner, or split away from the wall along the top edge is a visible marker of the joint coming apart underneath it.

Gaps that keep returning after being caulked or patched

A wall-to-ceiling gap that was caulked, taped, and painted, then reopened in the same line within a season or two, suggests the movement underneath is ongoing. A purely cosmetic seam stays closed once repaired, while a structural separation tends to come back because the cause was never addressed.

Most Common Causes

What causes ceiling gaps in Carolinas homes.

Seasonal clay movement in Piedmont soils

Across the Piedmont, including Charlotte, Huntersville, Matthews, Greensboro, Winston-Salem, and the Triangle, the soil is clay-rich. Clay swells as it absorbs water in wet seasons, then contracts as it dries through the summer. That repeated swell-and-shrink cycle loads and unloads the footings season after season, and over years it can settle one part of a foundation more than another. As a wall and the floor system it sits on drop with the settling foundation while the ceiling framing stays where it was, the joint between the wall and the ceiling pulls open. Ceiling gaps that appear over an interior wall in the same part of the home as sloping floors are a common sign of this pattern in the region's clay markets.

Differential foundation settlement

When the soil beneath one part of a footing compresses, or was never fully compacted during construction, that section of the foundation sinks lower than the rest. This is differential settlement, meaning different parts of the home move by different amounts rather than evenly. As one corner or wall drops out of plumb, the framing tied to it is pulled down with it, and the wall separates from the ceiling along the top edge. This is why a structural ceiling gap usually clusters in one area of the house and is widest nearest the part of the foundation that has settled the most.

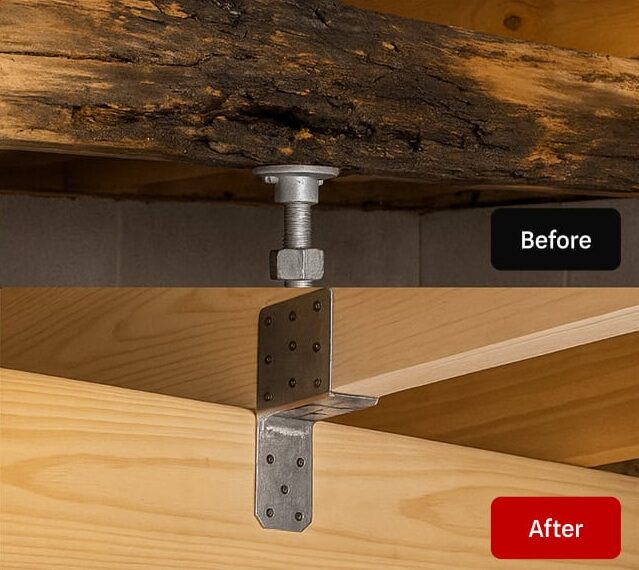

Crawl space support failure beneath the floor

Many Carolinas homes sit over crawl spaces where interior loads are carried by a girder beam resting on support piers. If a pier was undersized, set on a poor footing, or has shifted as the soil beneath it moved, the beam sags and the floor and the interior wall built on top of it drop. When that wall drops while the ceiling framing above holds its position, a gap opens at the top of the wall. A ceiling gap over an interior load-bearing wall, especially when the floor in that room feels low or bouncy, often points to the support underneath the floor rather than the perimeter foundation.

Wood rot and weakened framing from crawl space moisture

Humid Carolinas summers and ground moisture vapor keep many crawl spaces damp. Sustained moisture weakens wooden girders, joists, and sill plates, and weakened framing flexes and settles under load. As the framing that supports an interior wall loses its strength, that wall sinks relative to the ceiling and the joint between them opens. This is why a ceiling gap and a moisture problem in the crawl space often show up together, and why a lasting repair frequently has to resolve the moisture as well as the structure.

Hillside loads, sandy soils, and coastal saturation

Outside the Piedmont, the soil drivers shift. Around Asheville and the mountains, hillside lots, slopes, and heavy rainfall load and erode foundations unevenly, dropping the framing above them on one side. In the Sandhills around Fayetteville and Pinehurst, sandy soils settle and shift as fines wash out from beneath footings. In coastal markets like Wilmington, Leland, and Brunswick County, a high water table and saturated, sandy soils reduce the ground's bearing strength and let footings move. In each setting, the foundation movement below lowers a wall relative to the ceiling and reveals itself as a separation at the top of the wall.

Seasonal truss uplift in the attic

Not every ceiling gap points to the foundation. In homes built with roof trusses, the bottom chords of the trusses can arch upward in cold, dry winter air and relax back down in humid summer months, a well-documented seasonal effect called truss uplift. As the trusses lift, they raise the ceiling slightly and open a gap where interior walls meet it, then the gap closes again as the weather warms and the trusses settle. A wall-to-ceiling gap that opens every winter and closes every summer, with no sloping floors, sticking doors, or wall cracks alongside it, usually traces to this benign movement rather than to settlement. Ruling truss uplift in or out is part of an honest inspection before anything structural is considered.

Permanent Solutions

How foundation repair specialists actually fix ceiling gaps.

Solving ceiling gaps means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Carolinas homes.

Foundation Repair solutions

Engineered foundation repair solutions for this problem.

Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.

Push Piers

A proven structural method for settled foundations across North and South Carolina, transferring your home's weight onto stable soil deep below the surface.

Helical Piers

Screw-like steel piers driven deep below the active surface soil to support and, where possible, lift a settling foundation across North and South Carolina.

Foundation Underpinning

When the soil near the surface can no longer carry your foundation, underpinning reaches deeper ground to stabilize the structure. Serving homeowners across the greater Charlotte area and the Carolinas.

Regional Context

Why foundation movement across the Carolinas needs a regional diagnosis

Foundation movement behaves differently depending on where your home sits. In the Piedmont around Charlotte, Greensboro, Winston-Salem, and the Triangle, clay-rich soils absorb water in wet seasons and pull away from foundations as they dry, cycling pressure on your footings year after year. On the coast around Wilmington, Brunswick County, and Leland, a high water table and sandy, saturated soils create lateral pressure and settlement that inland clay never produces. In the mountains around Asheville, hillside lots and runoff load one side of a foundation more than the other. That is why our team starts with the soil and slope under your home, not just the crack on the wall.

Piedmont

Clay-rich soil belt

Charlotte to the Triad

Wet / dry

Seasonal moisture swing

Soil expands, then contracts

Coastal

High water table & salt air

Wilmington & Brunswick County

NC + SC

Local, no-pressure crews

Offices across the Carolinas

Piedmont clay and the crack patterns it produces

Much of the Piedmont, from Charlotte through the Triad, sits on clay-rich soil that holds water. Clay absorbs moisture in wet seasons and swells, then contracts in dry periods. That cycle pulls pressure on and off a foundation, pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently across the region.

Homes built on uncompacted clay backfill show the highest incidence of progressive settlement cracking in our inspection work. The same clay that looks stable through a normal year can move enough during a long wet spring or a hard summer drought to open a crack that keeps widening.

Coastal and Sandhills soils behave differently

In Wilmington, Brunswick County, and Leland, high water tables, saturated and sandy soils, and salt air drive a different set of failure modes than inland clay. Lateral water pressure, erosion, and corrosion are the drivers here, which is why coastal foundation and seawall work needs an approach that inland techniques don't account for.

Across the Sandhills near Fayetteville and Pinehurst, sandy soils drain differently again, and in the mountains around Asheville, hillside foundations, slopes, and heavy rainfall change the picture once more. We diagnose to the soil and climate of the specific home, not to the Carolinas generically.

"When someone calls about a gap opening up where their wall meets the ceiling, the first thing we sort out is whether it is the roof trusses lifting with the season, which is something a lot of Carolina homes do every winter, or whether the wall has actually dropped away from the ceiling. Those are two very different conversations, and a homeowner deserves to know which one they are in before anyone talks about repairs. If it is seasonal, we will say so and you can simply reset the trim. If the foundation or a support underneath has moved, we measure the whole home and show you exactly what shifted. No pressure and no upsell either way."

Cory Parks

Owner, HydroHelp911

Why Choose HydroHelp911

Care and expertise from a team that does this every day.

HydroHelp911 is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Carolinas.

Specialized expertise.

Foundation repair, waterproofing, and concrete leveling are our entire focus. not a sideline.

Locally owned and operated.

Deep experience with Carolinas soils, basements, and weather conditions.

BBB A+ rated.

Accredited with an A+ rating and thousands of homeowner reviews across the Carolinas.

Warrantied solutions.

Lifetime warranties available on many services, backed by the original installer.

HYDROHELP911

Why hire HydroHelp911.

MEET THE TEAM · 2 MIN

Frequently Asked Questions

Answers to common questions about Ceiling Gaps.

Don't see your question here? Our team is happy to help. Reach out anytime.

Not always, and that distinction matters. One common cause is seasonal truss uplift, where roof trusses arch upward in cold, dry winters and settle back in humid summers, opening a gap at interior walls that closes again when the weather turns. A gap that opens every winter and closes every summer, with no sloping floors or sticking doors, usually traces to this and is not structural. Other ceiling gaps are caused by foundation settlement or a sagging interior support that drops a wall relative to the ceiling, which does not reverse on its own and tends to widen over time. Because the two can look similar at the joint, an inspection that looks at the gap alongside the foundation and the floors is the reliable way to tell which one you have.

A few patterns help. A gap that opens in the cold months and closes again when summer humidity returns, stays confined to the top of interior walls, and comes with no sloping floors or sticking doors usually points to seasonal truss uplift. A gap that stays open year-round or widens season after season, that appears in a room where the floor also slopes or feels bouncy, or that shows up alongside diagonal cracks at door corners and doors that have started to stick, is more consistent with foundation or framing movement. These are clues rather than a diagnosis, which is why measuring the floor elevations and inspecting the foundation and crawl space is what actually confirms the cause.

The structural drivers shift with the region. In the Piedmont, around Charlotte, Greensboro, Winston-Salem, and the Triangle, clay-rich soils swell when wet and shrink when dry, cycling pressure on footings and settling them unevenly, which drops walls relative to the ceiling above. Around Asheville and the mountains, hillside lots and heavy rainfall load and erode foundations unevenly. In the Sandhills near Fayetteville and Pinehurst, sandy soils shift as fines wash out beneath footings. In coastal markets like Wilmington and Leland, a high water table and saturated, sandy soils reduce the ground's bearing strength. Separately, the wide humidity swing across a Carolina year drives the seasonal truss uplift that opens and closes ceiling gaps on its own, with no foundation movement at all. Many homes show some combination, which is exactly why the cause has to be confirmed rather than assumed.

It depends on the cause, and that is why we diagnose first. If the gap is seasonal truss uplift, the lasting fix is cosmetic rather than structural, often resetting the crown molding so it is fastened to the wall and allowed to float at the ceiling, which hides the seasonal movement so the joint no longer shows a gap. If the cause is foundation or framing movement, simply caulking or patching the joint covers the symptom and the gap tends to reopen in the same line because the wall behind it is still moving. The lasting approach there is to stabilize what moved first, settlement is typically addressed with piers and a sagging interior with reinforced crawl space supports, and then re-finish the joint once the wall is no longer moving. An inspection determines which cause applies before any repair.

In most cases homeowners continue living in the home while the gap is evaluated and any repairs are made. The concern with leaving a structural ceiling gap unaddressed is that the underlying movement usually continues, so the gap tends to widen and related signs like sloping floors, sticking doors, and wall cracks progress over time. Having it inspected lets you find out whether it is harmless seasonal truss movement or active foundation or framing movement, and decide on a plan at your own pace, without pressure. HydroHelp911 offers financing options when repairs are needed.
